M5stack T-Lite Thermal Camera Development Kit With MLX90640 Sensor Enhanced Infrared Imaging For DIY Projects

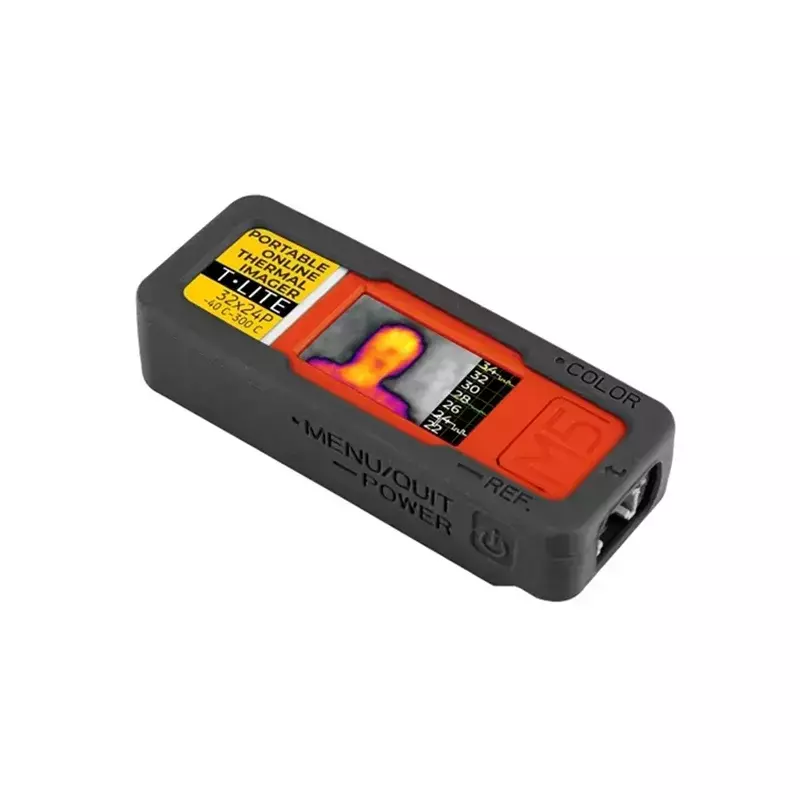

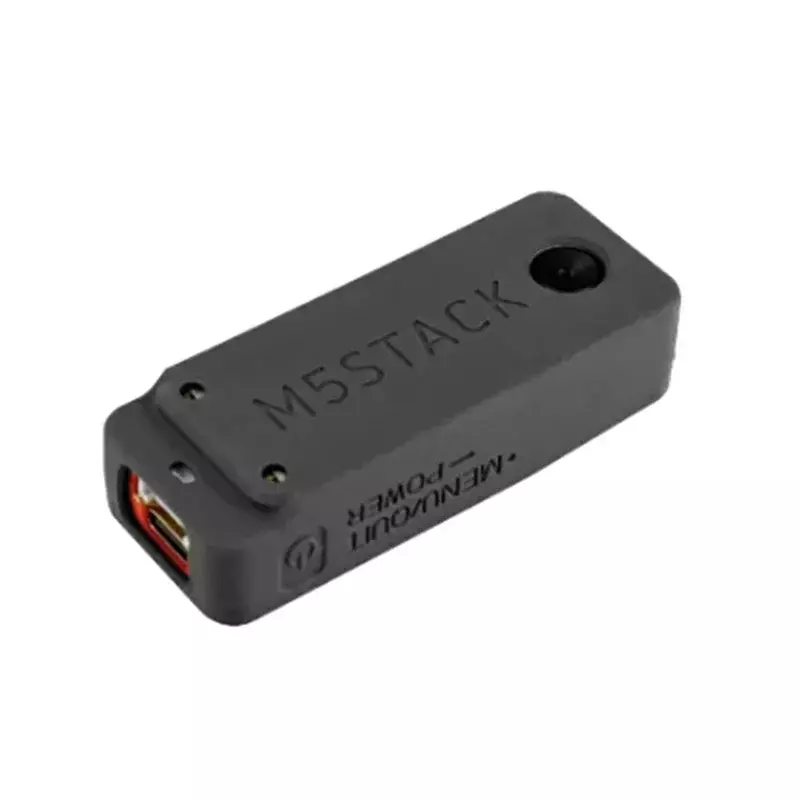

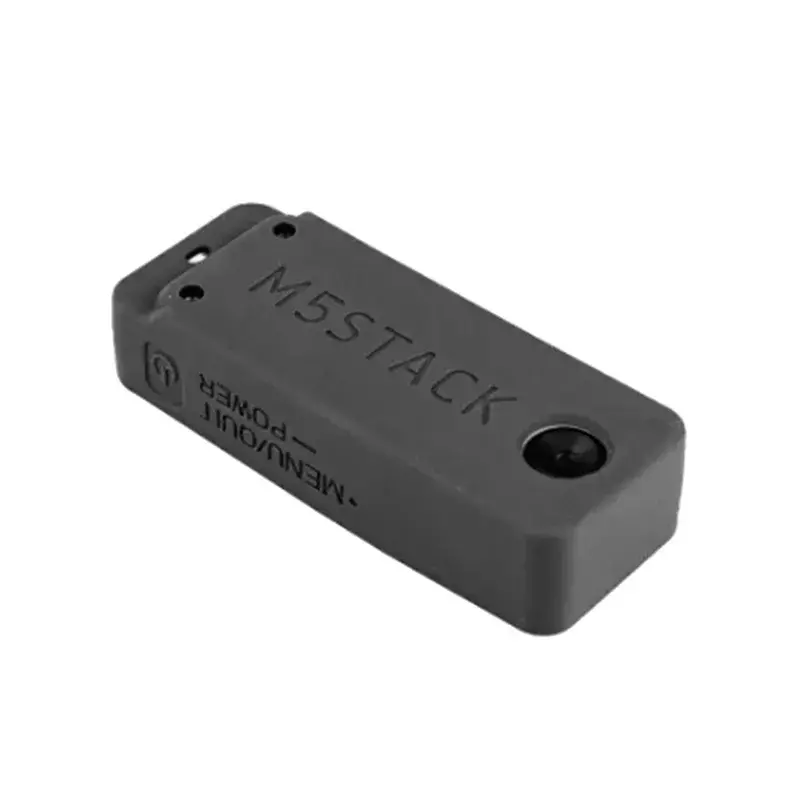

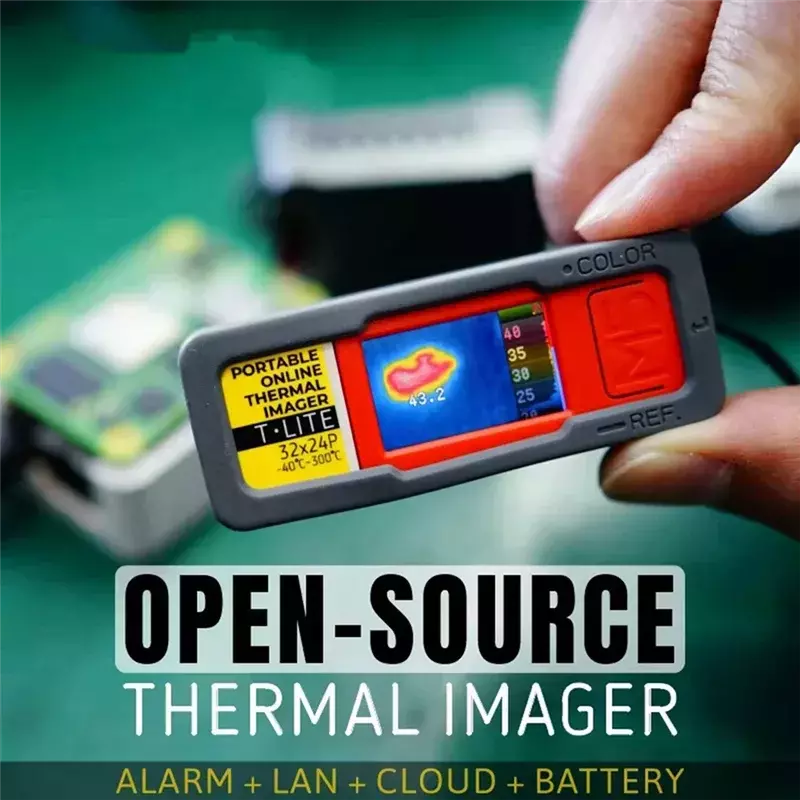

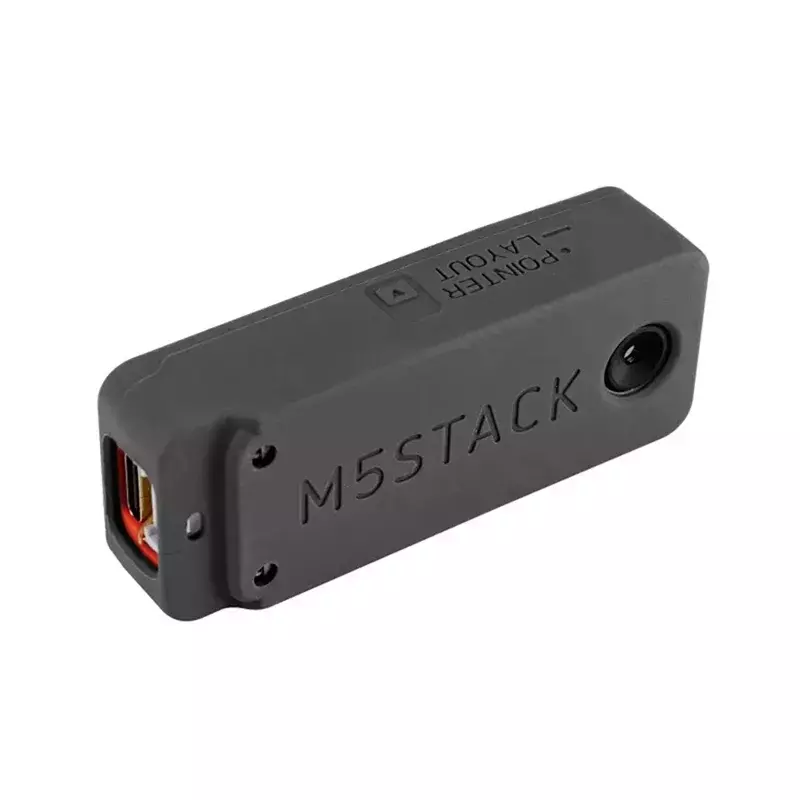

Lite is an integrated thermal imaging acquisition temperature measurement device with online detection function, the product is mainly composed of for M5StickC-PLUS and for UNIT THERMAL,
using MLX90640-BAA infrared imaging sensor, the main control uses ESP32-PICO-D4 chip, with WIFI function, 135x240 resolution TFT screen, built-in 160mAh battery,
its "T-Lite" The T in the name stands for Temperture temperature, and Lite stands for small, highly integrated. Users can set the high temperature warning function, and view temperature images and data in real time through the cloud and LAN.
M5 also provides an online data API interface, which can obtain remote images and corresponding data through EZData, which is convenient for engineering project applications.

ESP32-PICO based,WIFI
Buttons, LCD(1.14 inch)
Built-in Lithium Polymer Battery
Built-in Passive Buzzer
Field of View: 110°x75°
Measurement Range: -40°C - 300°C
Applications:
Temperature detection warning
Circuit temperature anomaly monitoring
High precision non-contact temperature measurements
Intrusion / Movement detection
Visual IR thermometers
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Colour:As Shown
Material:ABS

Package Contents:
1 x T-Lite Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
